Submersible pump Tsurumi Avant MQB Series
The Tsurumi Avant MQB pump, part of the renowned MQ series from Tsurumi Avant, is an excellent choice for those seeking powerful and energy-efficient performance. Equipped with an IE3 electric motor, this pump delivers impressive power while conserving energy. Its design mirrors other modules in the Tsurumi Avant MQ line, but what sets the Tsurumi MQB apart is its open impeller (similar to the Tsurumi B series). This feature ensures optimal efficiency in wastewater management. Choosing the Tsurumi Avant MQB means investing in a reliable and effective solution for your pumping needs.
The Tsurumi Avant MQB pump belongs to the MQ series of the Tsurumi Avant brand. This pump line is equipped with an IE3 electric motor, ensuring powerful performance while optimizing energy efficiency.
With a structure similar to other modules of the Tsurumi Avant MQ series, the Tsurumi MQB submersible wastewater pump stands out by featuring an open impeller (like the Tsurumi B series), allowing for the most efficient operation.
It can be installed either submerged in water (WET version) or outside the tank (DRY version) with a closed-loop internal cooling system.
The Tsurumi MQB pump series features a cast iron open impeller and a large discharge outlet, enabling it to handle high flow rates and large solid particles without clogging. The Tsurumi MQB series is an ideal solution for wastewater drainage systems, stormwater drainage, and initial rainwater collection tanks. Its high abrasion resistance and wide hydraulic passage ensure stable operation and long service life, minimizing maintenance requirements.
Key Features of Tsurumi Avant MQB Pumps
Tsurumi Avant MQB submersible pumps are highly reliable and efficient products, designed with numerous outstanding features:
-
Constructed from thick cast iron or durable stainless steel, equipped with a high-efficiency IE3 electric motor, compatible with both 50Hz and 60Hz systems.
-
Features thermal protection devices, long-life bearings, and a stainless-steel shaft to ensure stable and durable operation.
-
A leakage detection system, dual silicon carbide mechanical seals, and a large oil chamber effectively prevent leaks, extending the pump’s lifespan.
-
Large outlet diameters provide abundant flow capacity, with both WET and DRY versions available to suit various application needs.
-
Internal circulation cooling system and heat resistance up to 40-60°C ensure efficient performance in harsh environments.
-
Certified with IECEx explosion-proof standards, ensuring absolute safety for users.

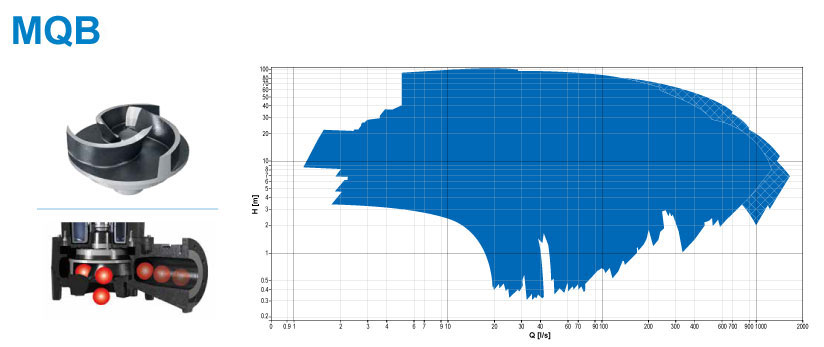

Technical Specifications of Tsurumi Avant MQB Series
|
Power |
1.1 – 355 kW |
| Poles | 2 / 4 / 6 / 8 / 10 / 12 |
|
Outlet Diameter |
DN65 – 500 |
|
Pipe |
max 220 x 110 mm |
|
Flow Rate |
1600 l/s |
|
Head |
100 m |
Tsurumi Avant MQB Series Product Details
| Model | Specifications | Origin | Notes |
| Tsurumi Avant MQB 065A | (1.8 – 3 kW – 2 poles) | TSURUMI Avant – ITALY | Available in DRY version |
| Tsurumi Avant MQB 065B | (1.8 – 2.2 kW – 2 poles) | TSURUMI Avant – ITALY | Available in DRY version |
| Tsurumi Avant MQB 080A | (4 – 11 kW – 2 poles) | TSURUMI Avant – ITALY | Available in DRY version |
| Tsurumi Avant MQB 080B | (4 – 11 kW – 2 poles) | TSURUMI Avant – ITALY | Available in DRY version |
| Tsurumi Avant MQB 080D | (4 – 11 kW – 4 poles) | TSURUMI Avant – ITALY | Available in DRY version |
| Tsurumi Avant MQB 080E | (1.8 – 3 kW – 2 poles) | TSURUMI Avant – ITALY | Available in DRY version |
| Tsurumi Avant MQB 080G | (15 – 18.5 kW – 2 poles) | TSURUMI Avant – ITALY | Available in DRY version |
Authorized Distributor of Tsurumi Avant Pumps in Vietnam
KaT Solution is proud to be a trusted supplier of Tsurumi Avant pump products, catering to all customer needs with a full range of series, including the most sought-after Tsurumi Avant models available today.
With a team of sales engineers boasting over 25 years of industry experience, we are ready to provide free consultation services to help customers select the most effective solutions and products tailored to their needs.
KaT Solution is committed to delivering genuine Tsurumi Avant pumps, backed by comprehensive warranty policies. Our sales principles go beyond distribution – we also provide technical consultation and dedicated service support from start to completion, ensuring customer satisfaction at every step.
